Byford Audio CF-153 Cinema Series

CF-153 Cinema Series

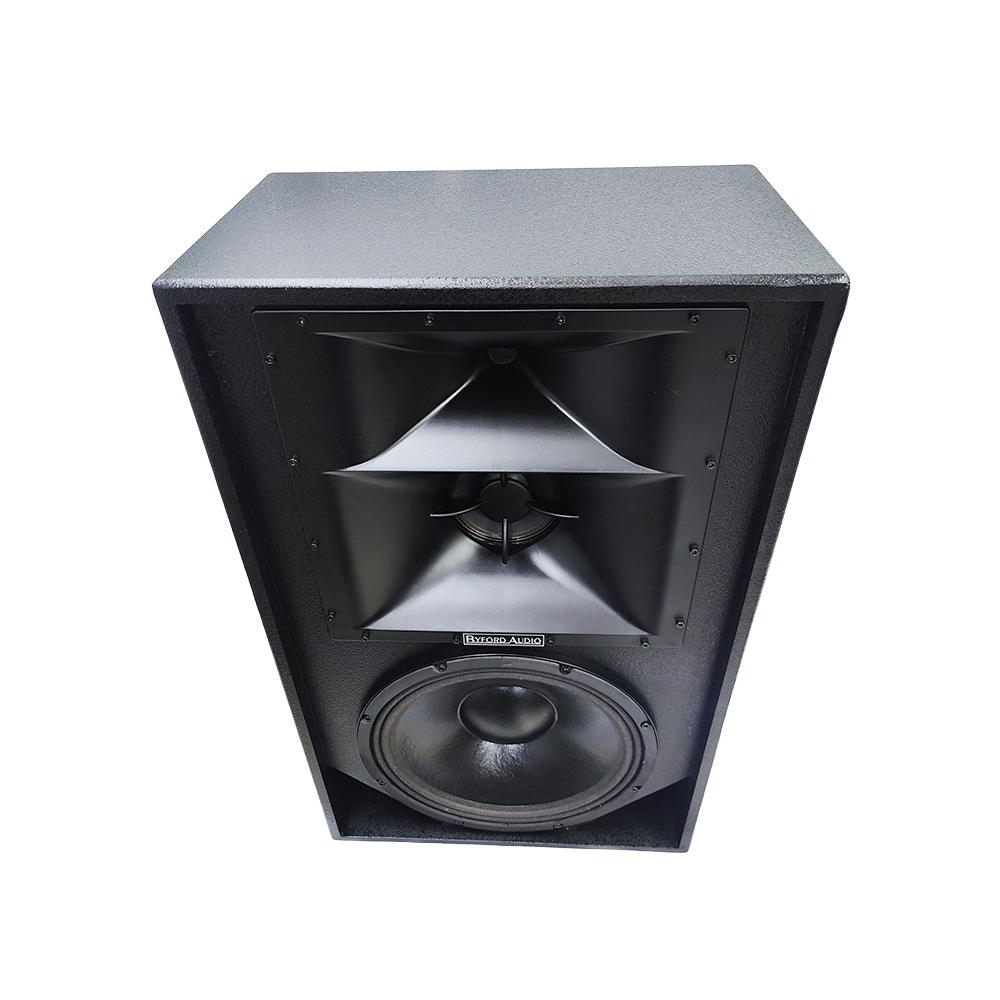

CF-153 LCR Speaker System is a 3-way design with 15” LF driver, 6.5” Horn Midrange & 1” Compression Horn HF with Excellent frequency response and stable dynamic output. Shallow profile for minimum depth required behind the screen. Suitable for use in dedicated cinema rooms with maximum depth of 60 feet * 30 feet width.

Features

• 1×15″ bass woofer (U.S. imported RDM cone, Aluminium cone 4″ EISV, symmetrically balanced external winding wires high temperature resistant voice coil)
• 1×6.5″ Midrange woofer (U.S. imported RDM cone, Aluminium cone 1.5″ EISV, symmetrically balanced external winding wires high temperature resistant voice coil)
• 1x 1″ tweeter (1.5″ EISV, symmetrically balanced external winding wires high temperature resistant voice coil, original imported polymeric membrane)

Specifications

Low Frequency driver: 1×15″

Woofer 4’’Voice Coil

Mid Frequency driver: 1×6.5” Midrange Woofer 1.5” Voice Coil

High Frequency driver: 1x 1” Compression HF 1.5” Voice Coil

Power: 500W RMS / 1000W Peak

Frequency range: 30-20KHz +/- 3dB

Sensitivity: 99dB

Peak SPL level: 122dB

Impedance: 8ohm

Connectors: Speakon

Cabinet: Birch Plywood.

Cabinet Dimension (W*H*D): 21” * 34.5” * 12.75” inch

N.W: 39 kg
